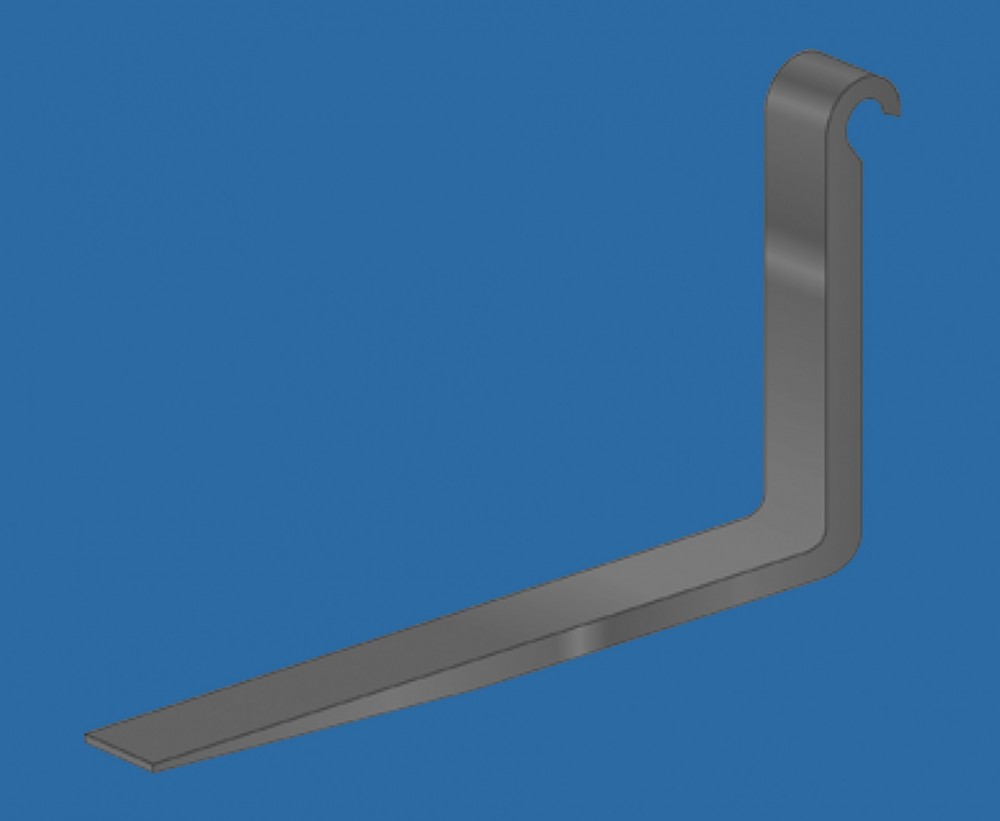

Quick Detach (QD) Forks

快装货叉的设计，可以很轻松快速地从挂架上取下或安装上，无需拆卸挂架或者固定杆，所以无需停机便可操作。快速互换会给您节省时间和成本。

产品特点：

●快装货叉具有开放式的挂钩，可以安装在方形或者圆形挂架上。

●根据叉车工作场地的运行情况是否平稳，请根据需要加装固定装置，防止货叉意外脱落。

●在安装和取下货叉时，操作员须注意安全。

Quick Detach (QD) Forks are designed to be easily and quickly removed from the lift truck’s carriage when required. The key feature is the upper hook which allows the fork to be removed without the need to remove the carriage/fork retaining bar, which would result in down time for the lift truck. This design is usually required for big forks that difficult to handle due to their weight or for handling a different lifting tool for a different application(eg. a Coil Ram). Quick interchangeability is a huge time and financial advantage.

Features:

● Quick Detach Forks have an open style hook which could fit over either a round or square carriage bar.

● Depending on the surface the truck is working on (indoor surface or outdoor uneven surface),each fork may require a lower retaining fixture to prevent the fork from unintentionally disengaging.

● Owners and operators must ensure a safe and secured method and area for removing the forks. To prevent any accidents or injury ,refer to ANSI/ITSDF B56.1-2012.
